PCB Basics

What is PCB?

A printed circuit board (PCB) mechanically supports and electrically connects electrical or electronic components using conductive tracks, pads and other features etched from one or more sheet layers of copper laminated onto and/or between sheet layers of a non-conductive substrate.

How It Works?

It is a board that has lines and pads that connect various points together. In the picture above, there are traces that electrically connect the various connectors and components to each other. A PCB allows signals and power to be routed between physical devices.Present days in every electronic device pcb is used.

PCB Routing Tips?

In electronic design, wire routing, commonly called simply routing, is a step in the design of printed circuit boards (PCBs) and integrated circuits (ICs). It builds on a preceding step, called placement, which determines the location of each active element of an IC or component on a PCB.In pcb design routing plays main important role.

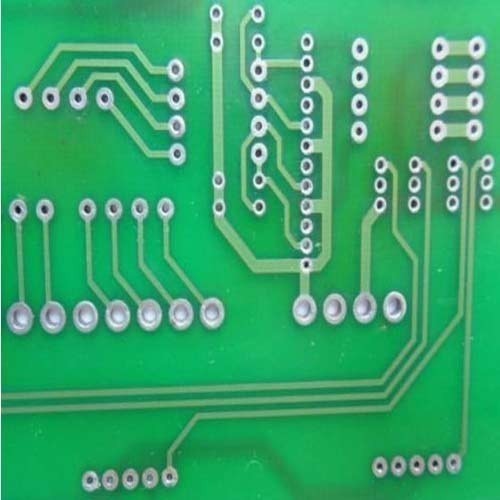

Single Layer PCBs

High Quality Circuit Boards

Single Layered PCBs


Single layer PCB, also known as single-sided PCB, which is a type of PCB which comes with only one layer of conducting material on one side of the board and other side is used for incorporating different electronic components on the board. Single layer PCB is widely used in the printed circuit board design in a variety of different electronic sectors where low costs are required. What’s more, single layer PCB has been made of various of material, such as paper reinforced phenolic resin with copper foil and glass fiber reinforced epoxy resin with copper foil and so on.

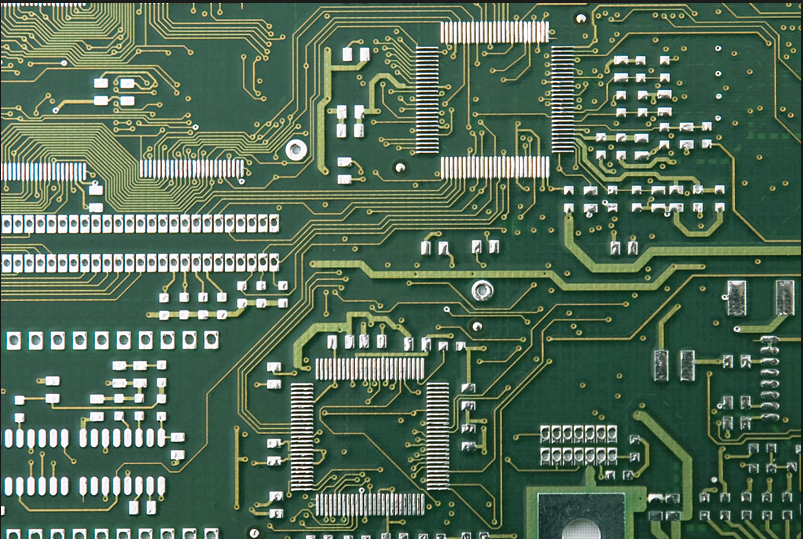

Multi Layer PCBs

High Quality Circuit Boards

Multi Layered PCBs


These is also one type of pcb design.In this multi layer pcb contains more then two layers.Unlike a Double-Sided PCB which only has two conductive layers of material, all multilayer PCBs must have at least three layers of conductive material which are buried in the center of the material.

Double Layer PCBs

High Quality Circuit Boards

Double Layered PCBs


Double Sided PCB, also known as two layer PCB is a type of PCB which has conductive copper layers on both sides of the board. ... It is extremely useful in many electronic applications because circuits on one side of the board can be connected on the other side of the board with the help of holes drilled on the board.

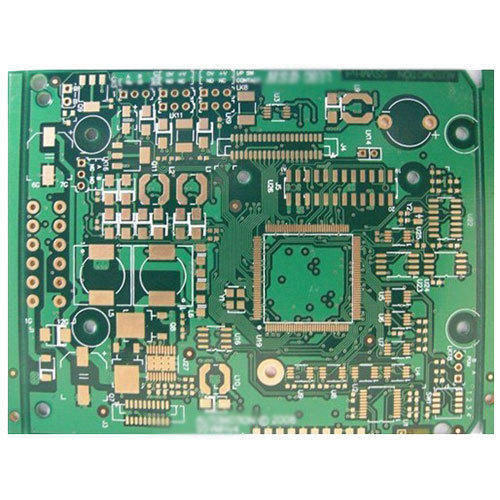

Rigid PCBs

High Quality Circuit Boards

Rigid PCBs


Rigid PCB is a kind of Printed Circuit Board, and is the largest number of PCB manufactured. It is made of solid substrate material, which can effectively prevent the distortion of the circuit board. Perhaps the most common rigid PCB is the computer motherboard.

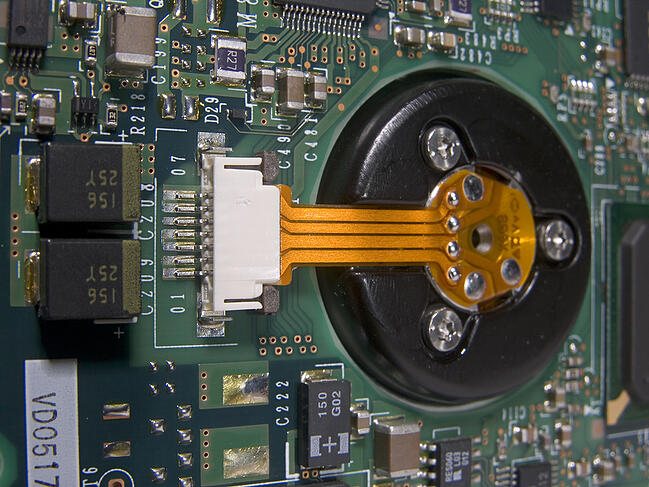

Flexible PCBs

High Quality Circuit Boards

Flexible PCBs


A Flex PCB or FPCB is a patterned arrangement of printed circuitry and components that utilizes flexible based material with or without flexible coverlay.Flex circuit's ductility and low mass reduces the impact of vibration and shock and improves performance.

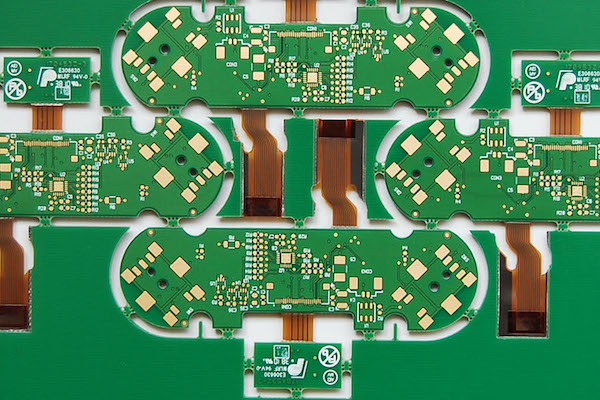

Flex-Rigid PCBs

High Quality Circuit Boards

Flex-Rigid PCBs


Rigid-Flex printed circuit boards are boards using a combination of flexible and rigid board technologies in an application. Most rigid flex boards consist of multiple layers of flexible circuit substrates attached to one or more rigid boards externally and/or internally, depending upon the design of the application.

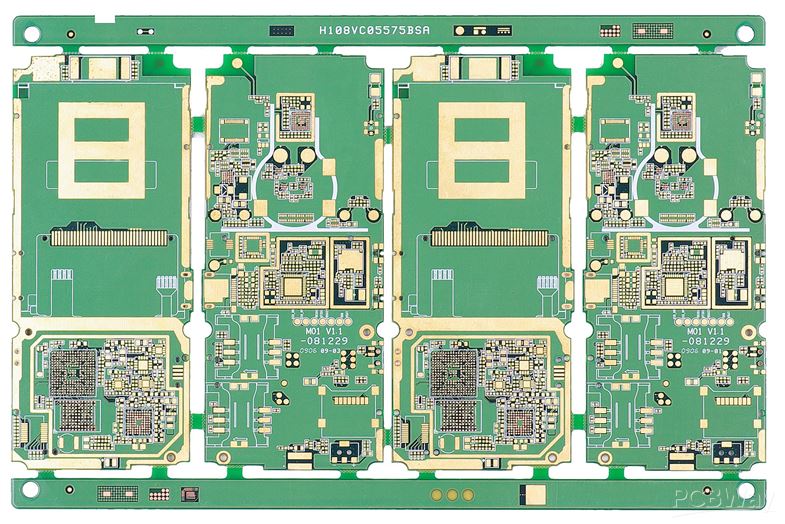

High Frequency PCBs

High Quality Circuit Boards

High Frequency PCBs


Electronic devices with high frequency is the developing tendency nowadays, especially in wireless network. Satellite communication growing rapidly, information products move towards high speed and high frequency. Thus developing new products always need to use high frequency substrate, satellite system, mobile telephone receiving base station and so on, these communication products must use high frequency PCB.

Aluminum Backed PCBs

High Quality Circuit Boards

Aluminum Backed PCBs


Aluminum PCBs are printed Circuit Boards which contain a thin layer of conductive dielectric material. They are also known as Aluminum Clad, Aluminum base, MCPCB (Metal Clad Printed Circuit Board), IMS (Insulated Metal Substrate), Thermally Conductive PCBs etc.
